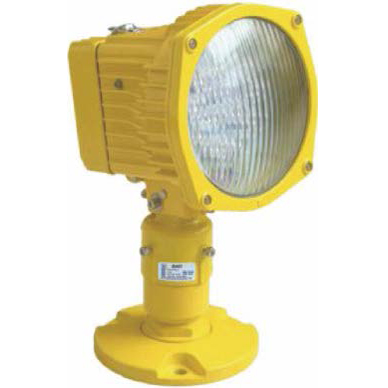

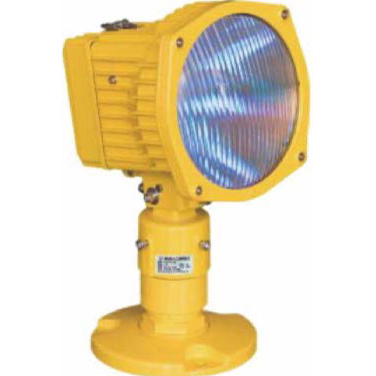

Elevated Runway Threshold Light
Compliance with standards
CAAC: AC-137-CA-2015-03-Rl
SAC: GB/T 7256-2005
ICAO: Annex 14, Volume I
Application areas
Runway threshold light
Features
Designed in strict accordance with the technical requirements of ICAO Annex 14, Volume I.
LED is featured by long lifespan, energy saving and maintenance-free, which brings economic benefits.
Efficient power factor correction circuit to effectively reduce interference to power supply network.
Two-way high frequency switching mode LED constant current circuit, two separate dimming.
High precision digital dimming perfectly simulates the dimming curve of halogen light source.
Professional LED heat dissipation mode effectively reduces the working temperature of lamp beads and drivers, and ensures the long service life of LED.
Using 125℃ high temperature and long lifespan electrolytic capacitor to improve the stability of LED drive power supply.
Provide drive fault and load open circuit detection function, disconnect isolation transformer secondary in case of fault.
Compact structure and attractive appearance, with small windward area and strong wind resistance capability(can withstand wind speed of 480km/h).
The light body is with angle measurement and calibration fixed position, which is convenient for angle position calibration during installation.
The main body is made of aluminum alloy with anti-corrosion surface treatment, which is light, strong and has good anti-corrosion performance.
IP54 ingress protection puts an end to the erosion of dust and rain on the interior.
The glass cover adopts special toughened glass to prevent the glass cover from cracking caused by drastic changes in temperature.
The fasteners are made of stainless steel and are durable.
Frangible device with precise machining, complying with CAAC and FAA standards, ensuring good stability and reliability.
Interchangeable, modular-designed components are easy to replace.
Model definition
Installation methods
