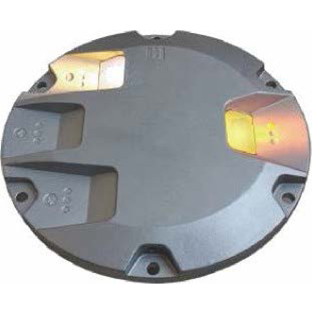

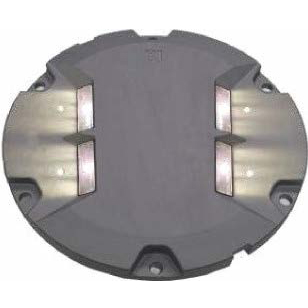

Inset Runway Edge Light
Compliance with standards
CAAC: AC-137-CA-2015-03-Rl
SAC: GB/T 7256-2005
ICAO: Annex 14, Volume I
Application areas
Runway edge light
Features
Designed in strict accordance with the technical requirements of ICAO Annex 14, Volume I.
LED is featured by long lifespan, energy saving and maintenance-free, which brings economic benefits.
Efficient power factor correction circuit to effectively reduce interference to power supply network.
High frequency switching mode LED constant current circuit.
High precision digital dimming perfectly simulates the dimming curve of halogen light source.
Professional LED heat dissipation mode effectively reduces the working temperature of lamp beads and drivers, and ensures the long service life of LED.
Using 125℃ high temperature and long lifespan electrolytic capacitor to improve the stability of LED drive power supply.
The main body is made of aluminum alloy with anti-corrosion surface treatment, which is strong and has good anti-corrosion performance.
Specially-designed structure, the protruding height of LED light is only 6.3mm, and that of halogen light is only 12mm.
Upper cover with equal-strength design and forging craft, which has good mechanical performance, strong bearing capacity and strong impact resistance.
Smooth upper cover without sharp edge to prevent aircraft tires from damaging.
IP68 ingress protection puts an end to the erosion of dust and rain on the interior, and can withstand the instantaneous hydraulic impact of 1380KPa.
The optical prism adopts special toughened glass to prevent the prism from cracking caused by drastic changes in temperature.
The fasteners are made of stainless steel and are durable.
Interchangeable, modular-designed components are easy to replace.
Model definition
Installation methods
