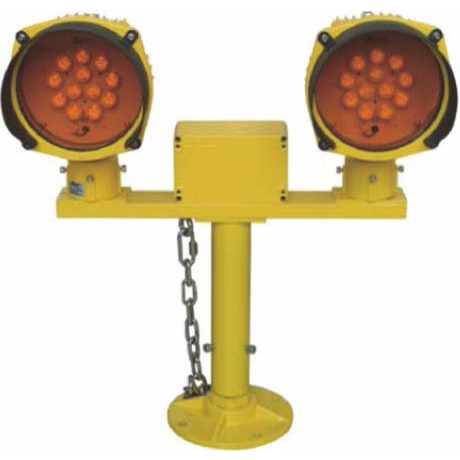

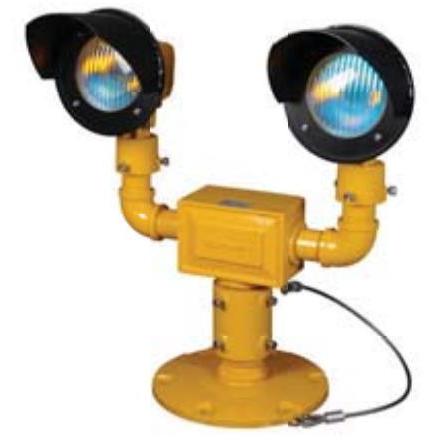

Elevated Runway Guard Light
Compliance with standards
CAAC: AC-137-CA-2015-03-Rl
SAC: GB/T 7256-2005
ICAO: Annex 14, Volume I
Application areas
Runway guard light
Features
Designed in strict accordance with the technical requirements of ICAO Annex 14, Volume I.
LED is featured by long lifespan, energy saving and maintenance-free, which brings economic benefits.
Efficient power factor correction circuit to effectively reduce interference to power supply network.
Two-way high frequency switching mode LED constant current circuit, two separate dimming.
High precision digital dimming perfectly simulates the dimming curve of halogen light source.
Professional LED heat dissipation mode effectively reduces the working temperature of lamp beads and drivers, and ensures the long service life of LED.
Using 125℃ high temperature and long lifespan electrolytic capacitor to improve the stability of LED drive power supply.
Provide drive fault and load open circuit detection function, disconnect isolation transformer secondary in case of fault.
Flash 45 to 50 times per minute, and the LED light source in the fixture emit light alternately.
Compact structure and attractive appearance, with small windward area and strong wind resistance capability(can withstand wind speed of 480km/h).
The controller is separated from the light body to prevent the high temperature produced by the light source from affecting the controller.
When either light source fails, the remaining light source can still flash normally.
When control board fails, light source stays on.
The light body shade design can effectively prevent the pilot from dazzling caused by a specific angle of light.
The main body is made of aluminum alloy with anti-corrosion surface treatment, which is light, strong and has good anti-corrosion performance.
IP65 ingress protection puts an end to the erosion of dust and rain on the interior.
Model definition
Installation methods
